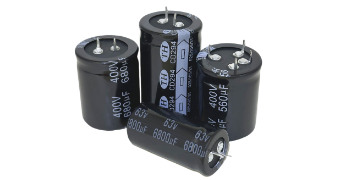

Snap-In Terminal Aluminum Electrolytic Capacitors
Compact press-fit mounting with snap-in terminals — 8 series, 22φ to 40φ
Looking for a brand alternative? Cross-reference Nichicon, Chemi-Con, Rubycon and more with PDF datasheets.
Cross Reference →
Snap-In Series Overview
| Series | Key Features | Typical Applications | Datasheet |
|---|---|---|---|
| CD17FX | Miniature snap-in, high reliability, long life | Frequency converter output filtering, SMPS | |
| CD292 | Standard snap-in, 105°C, wide capacitance/voltage range | General industrial, power supplies | |
| CD293 | High ripple current, DC-link optimized | Inverter DC-link, PFC circuits | |
| CD294 | Extended life, ultra-low ESR | Demanding industrial environments | |
| CD295 | High voltage (up to 500V), robust | High-voltage DC bus, industrial drives | |
| CD296 | Compact, high capacitance density | Space-constrained inverter designs | |
| CD297 | Load-life optimized, high temperature | Extended life under high temperature | |
| CD298 | Large diameter (up to 40φ), high power | UPS, welding equipment |
Specifications Range
22–40φ
Diameter Range
6.3–500V
Voltage Range
85°C / 105°C
Temperature Ratings
47–100,000μF
Capacitance Range
