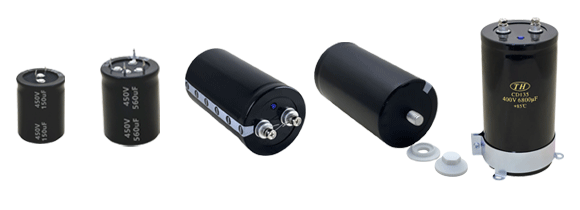

Aluminum Electrolytic Capacitor Products
Complete range of snap-in and screw terminal capacitors for industrial applications — every series with PDF datasheet download
Complete Product Catalogue
Browse all 17 product series including snap-in and screw terminal capacitors with detailed electrical specifications, mechanical dimensions, and ordering information.
📄 Download Full Catalogue (PDF)
Looking for a brand alternative?
HTML cross-reference tables for Nichicon, Chemi-Con, Rubycon, Panasonic, EPCOS/TDK, Vishay, and Cornell Dubilier — with PDF datasheets and 15–30 day standard lead times.
🔲 Snap-In Terminal Aluminum Electrolytic Capacitors
Snap-in terminal capacitors feature a secure press-fit mounting design that eliminates the need for screws or additional hardware. Our snap-in series covers diameters from 22mm to 40mm, with voltage ratings up to 500V.
| Series | Description | Datasheet |
|---|---|---|
| CD17FX | Miniature snap-in, high reliability, long life. Suitable for frequency converter output filtering and SMPS. | 📄 Download PDF |
| CD292 | Standard snap-in series, 105°C rated. Wide capacitance and voltage range for general industrial use. | 📄 Download PDF |
| CD293 | High ripple current snap-in capacitor. Optimized for inverter DC-link and power factor correction circuits. | 📄 Download PDF |
| CD294 | Extended life snap-in capacitor with ultra-low ESR design. Ideal for demanding industrial environments. | 📄 Download PDF |
| CD295 | High voltage snap-in series. Designed for high-voltage DC bus applications in industrial drives. | 📄 Download PDF |
| CD296 | Compact snap-in with high capacitance density. Suitable for space-constrained inverter designs. | 📄 Download PDF |
| CD297 | Load-life optimized snap-in capacitor. Engineered for extended operational life under high temperature. | 📄 Download PDF |
| CD298 | Large diameter snap-in capacitor for high-power applications. Designed for UPS and welding equipment. | 📄 Download PDF |
🔲 Screw Terminal Aluminum Electrolytic Capacitors
Screw terminal capacitors provide a robust, vibration-resistant connection ideal for high-power industrial applications. Our screw terminal series spans diameters from 35mm to 100mm.
| Series | Description | Datasheet |
|---|---|---|
| CD92 | Standard screw terminal capacitor. General-purpose series with wide operating temperature range. | 📄 Download PDF |
| CD92L | Long-life version of CD92 with extended load life. Suitable for continuous industrial operation. | 📄 Download PDF |
| CD135 | Large-can screw terminal capacitor. Built for heavy-duty industrial power filtering applications. | 📄 Download PDF |
| CD136 | High-voltage large-can screw terminal. Optimized for high DC-bus voltage in power converters. | 📄 Download PDF |
| CD13L | Long-life screw terminal series. Designed for applications requiring 10,000+ hours at 85°C. | 📄 Download PDF |
| CD13N | Standard screw terminal with optimized ESR characteristics. Widely used in industrial automation. | 📄 Download PDF |
| CD13HL | High-temperature, long-life screw terminal. Rated for 105°C continuous operation in demanding environments. | 📄 Download PDF |
| CD13NH | High-temperature standard screw terminal. Combines high reliability with compact form factor. | 📄 Download PDF |
